IDEX部件编号: FL-426383
For optimal filter set performance, pair this exciter with AF01-811/81 and AF764-Di01, which have been optimized for Cy7™, Alexa Fluor 750, and other key fluorophores. Precise edge placement of the steep spectral edges combined with deep complementary blocking maximize fluorophore performance compared to standard exciter and emitter pairs.
| Optical Specifications | Value |
|---|---|

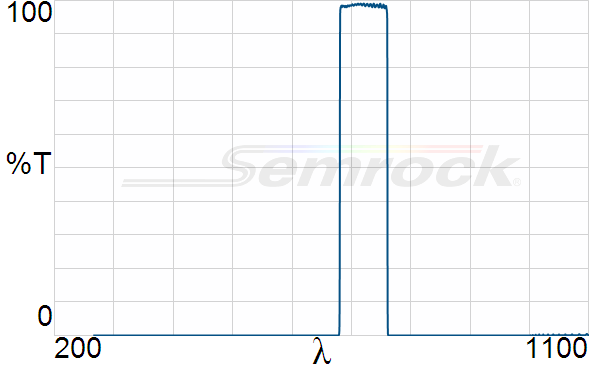

| Transmission Band 1 |
Tavg > 93% 683 – 758 nm |
| Blocking Band 2 |
ODavg > 5 275 – 340 nm |
| Blocking Band 5 |
ODavg > 10 770.5 – 871 nm (Design specification – measurements are noise-floor limited) |
| Blocking Band 3 |
ODavg > 6 340 – 668 nm |
| Blocking Band 6 |
ODavg > 2 871 – 1100 nm |
| Blocking Band 1 |
ODavg > 5 200 – 275 nm (Design specification – measurements are noise-floor limited). |
| Blocking Band 4 |
ODabs > 3.5 764 nm |
| Center Wavelength 1 |
720 nm |
| FWHM Bandwidth 1 (nominal) |
80.5 nm |
| Guaranteed Minimum Bandwidth 1 |
75 nm |
| General Filter Specifications | Value |
| Angle of Incidence |
0 ± 5 degrees |
| Cone Half-angle |
7 degrees |
| Optical Damage Rating |
Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hrs. |
| Physical Filter Specifications | Value |
| Transverse Dimensions (diameter) |
25 mm |
| Transverse Tolerance |
+ 0.0 / – 0.1 mm |
| Filter Thickness (mounted) |
5 mm |
| Filter Thickness Tolerance (mounted) |
± 0.1 mm |
| Filter Thickness Tolerance (unmounted) |
± 0.1 mm |
| Filter Thickness (unmounted) |
2.0 mm |
| Clear Aperture |
≥ 21 mm |
| Scratch-Dig |
60-40 |
| Orientation |
Arrow on ring is preferred direction of propagation of light |
